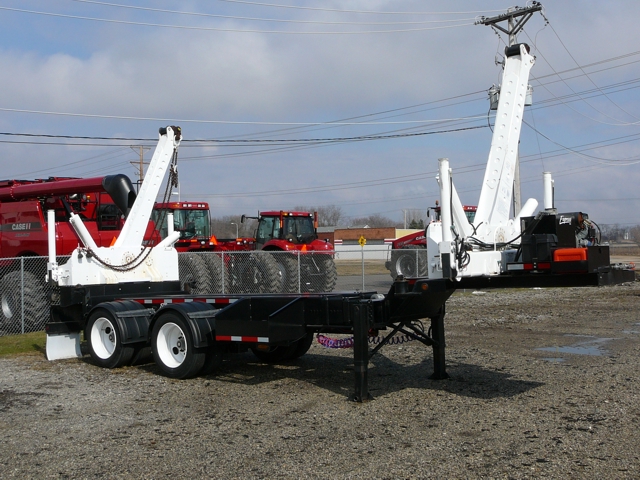

10T Swing Thru 22,000 lb.
Lifting Capacity Double Sided Container Handler,

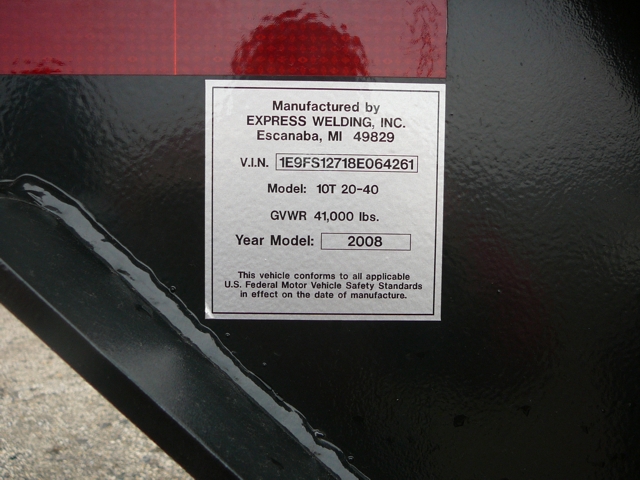

Mounted On An Express Welding 41,000 lb. GVWR
Trombone Trailer For Loading 20' - 40' Containers

·        Express Welding Trailer manufactured in Escanaba, MI

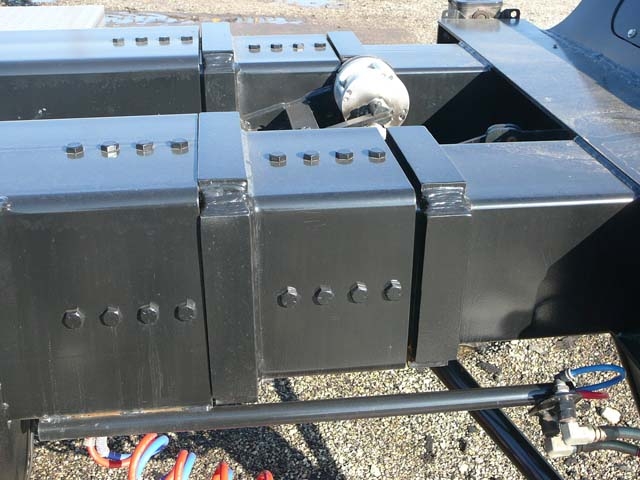

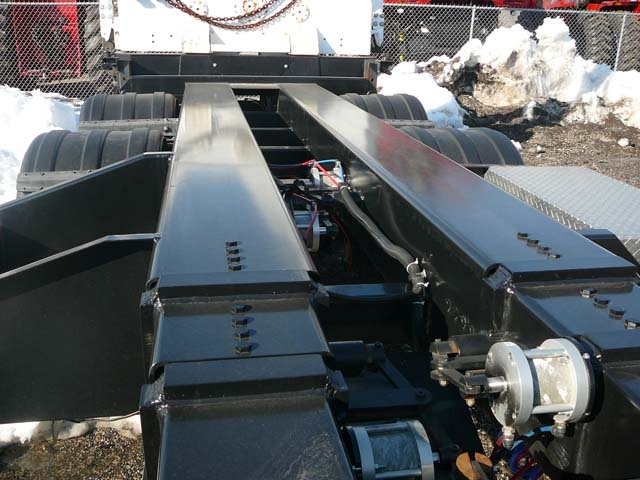

·        Twin Beam telescoping frame (20' to 40' variable container lengths possible)

·        Overall trailer length with a 20’ container is just under 28’, with a 40’ it is just under 48’

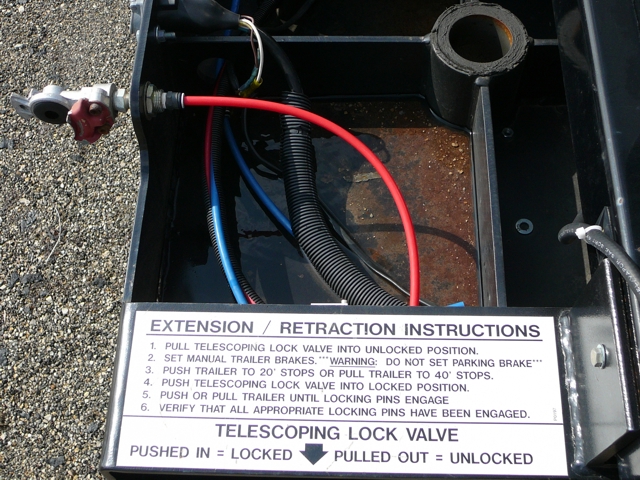

·        Gooseneck mounted air controls for lengthening and shortening of trailer

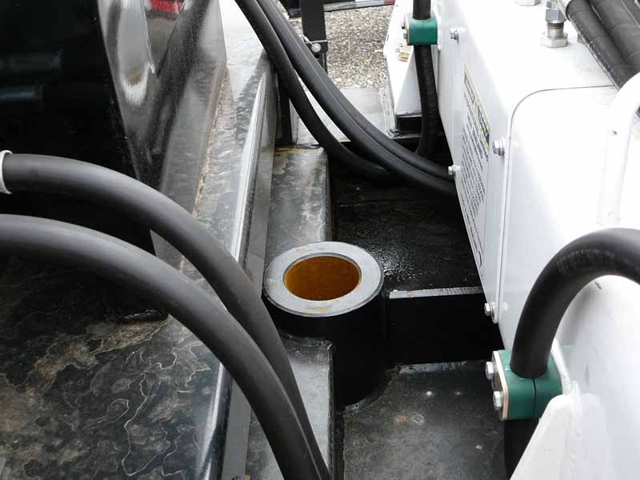

·        Drop in 5th wheel Kingpin with (2) locations 60" & 84"

·        (2) Speed Landing Gear

·        255/70R22.5 radial tires on steel bud type wheels

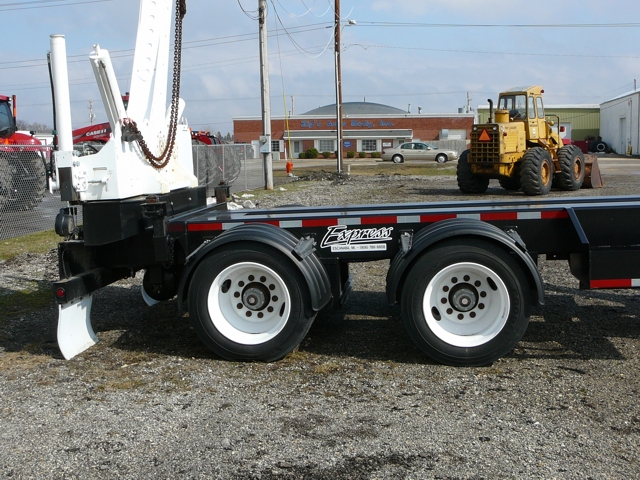

·        Dual, 25,000 lb. axles, with oil bath hubs, air ride suspension and 60" axle spacing

·        Air suspension dump valve at the rear of the trailer, for loading heavy containers

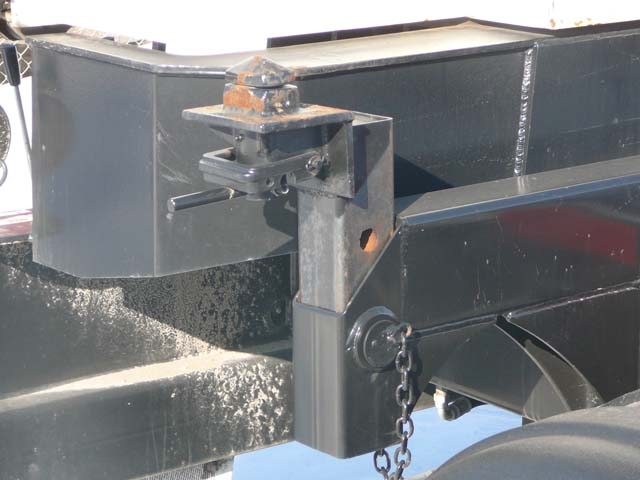

·        ISO Twist Lock style container tiedowns (rear telescopes up & down)

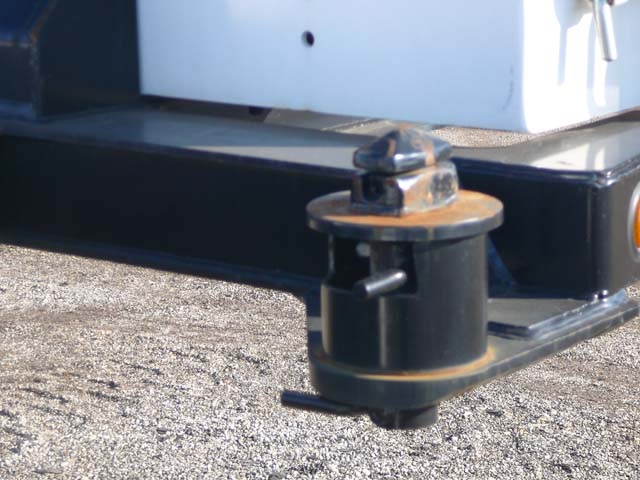

·        (2) Twist Lock extensions for front on containers without a gooseneck tunnel

·        Rear bumper has brake & turn LED signals, strobe LED’s, 3-center LED I lights

·        Side marker LED’s, license plate lamp, and floodlights on rear corners

·        Mid-span marker LED’s on front end of rear telescoping tube

·        Side marker LED’s on end of front twist lock support arm

·        E-Chain inside of the sliding tubes with hoses and electrical wiring

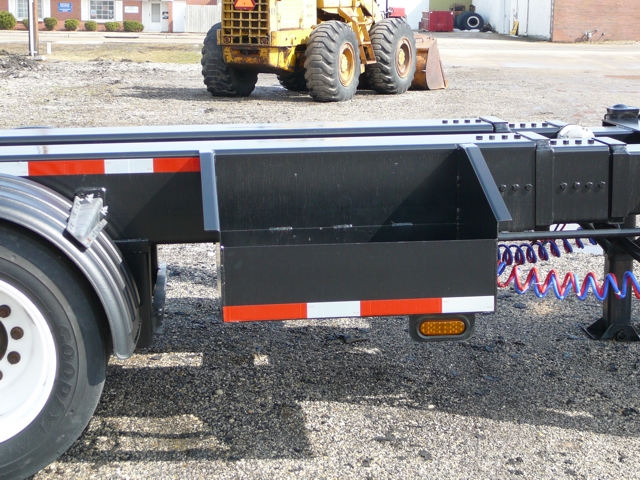

·        Right side has large wire basket, left side a small wire basket with locking toolbox

·        Black poly fenders

·        STD paint for trailer is black

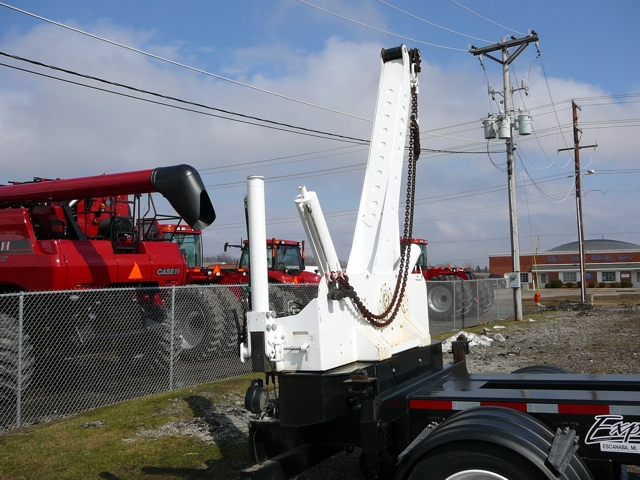

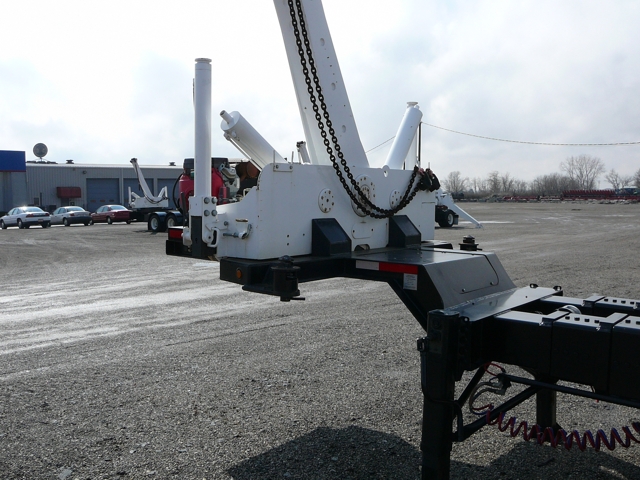

·        10T Swing Thru Fixed Crane System with 22,000 lb. lift capacity hydraulic operated booms

·        3/8” Grade 100 lifting chains with shorting elements and ISO container lifting lugs

·        Hydraulic stabilizing legs mounted on sliding outriggers at all 4 corners

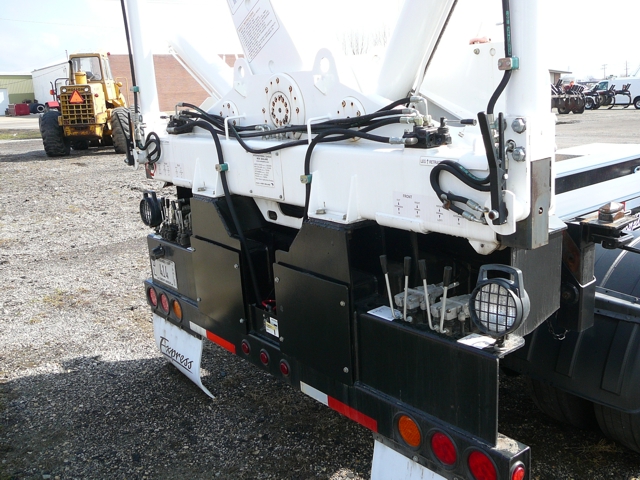

·        Manually operated hydraulic boom controls are mounted at both rear corners of the trailer for better visibility

·        Hydraulic cylinders have pilot operated check valves, or counter balance valves to ensure smooth operation and safety against hose failure or cylinder creep

·        With a 48" fifth wheel height, the cranes mounting height is 53.5" off the ground

·        With a 48" fifth wheel height and the booms in the parked position, the transport height is 13'6" (Parked position means the head of boom is flush with side of container)

·        With a 48” fifth wheel height, a 40’ high cube with the container tunnel straddling the trailers goose neck  transport height is 13'6"  (Doors to rear)

·        Overall weight is 19,500 lbs. (Trailer, 10T Swing Thru and gas powered APU)

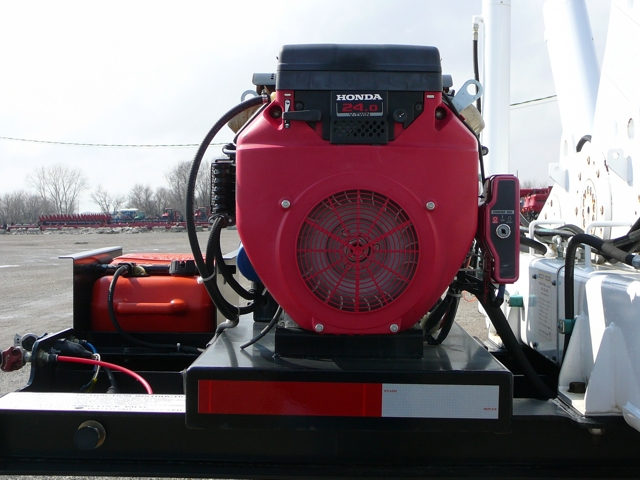

·        “APU” self contained hydraulic system with double hydraulic pumps, oil reservoir and filter. With a 24HP Honda 4 cycle air cooled Gas engine with 12 volt electric starter

·        STD Swing Thru paint is white
