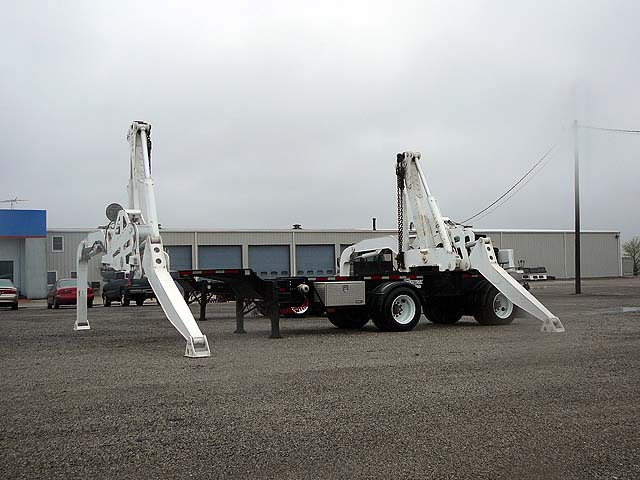

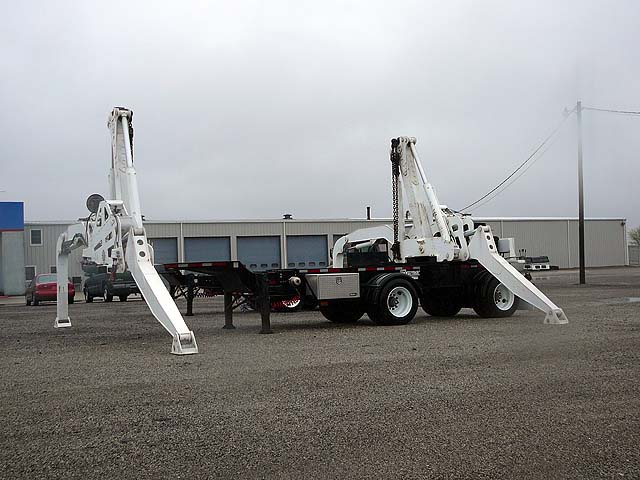

Used 27T Swing Thru 60,000 lb.
Lifting Capacity Double Sided Container Handler,
Mounted On An Express Welding 96,000 lb. GVWR

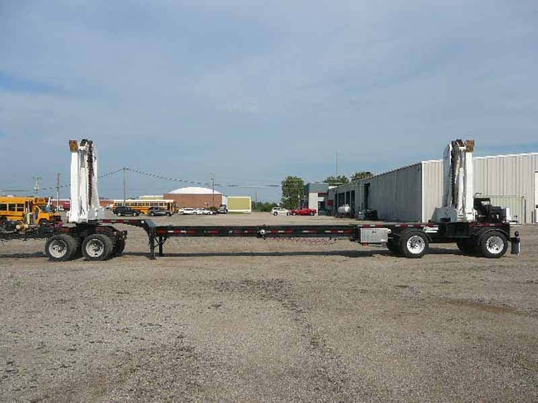

Trombone Trailer For Loading 20' - 40' Containers

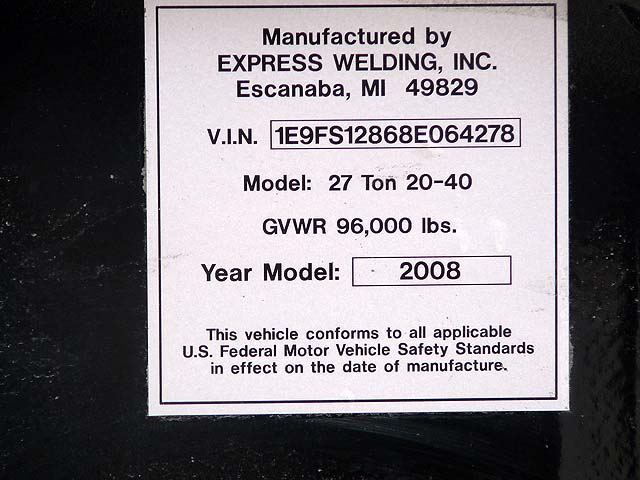

Express Welding Trailer manufactured in Escanaba, MI

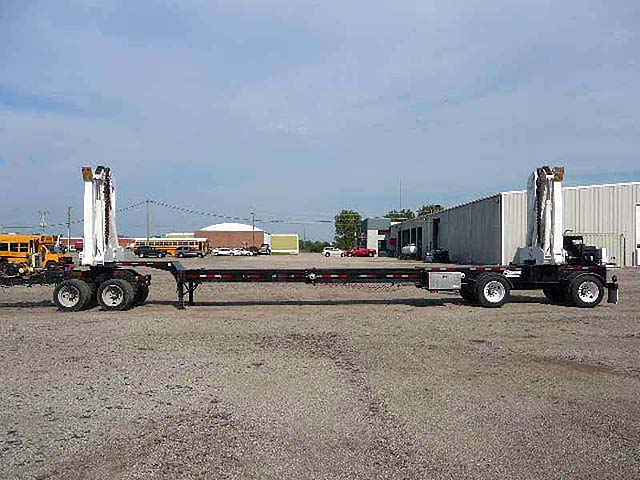

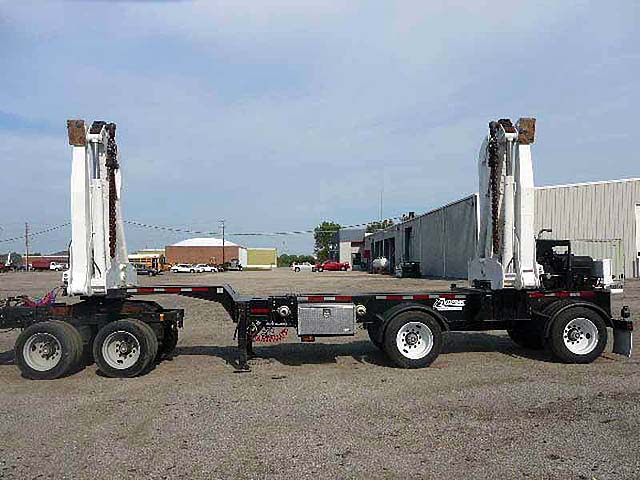

  • Twin Beam telescoping frame (20' to 40' variable container lengths possible)
  • Designed for a 48” 5th wheel height
  • Overall trailer length with 20’ container and APU is 30’8”, with 40’ it is 50’8”
  • Gooseneck mounted air control for lengthening and shortening trailer from 20’- 40’ containers
  • 84” 5th  wheel swing clearance
  • (2) Speed Landing Gear
  • 275/70R22.5 Radial tires on 10 bolt stud piloted steel bud type wheels

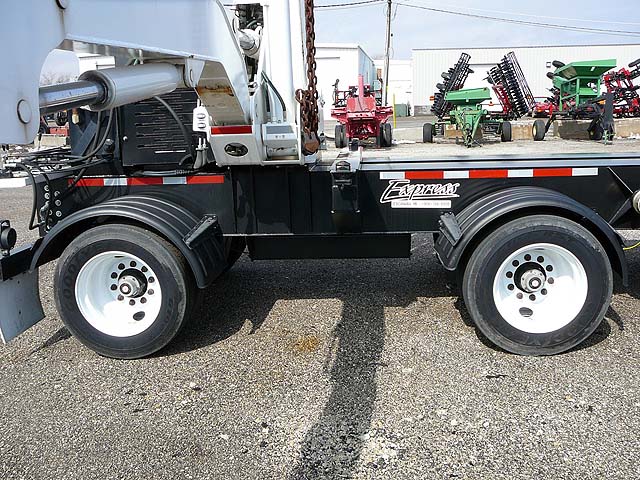

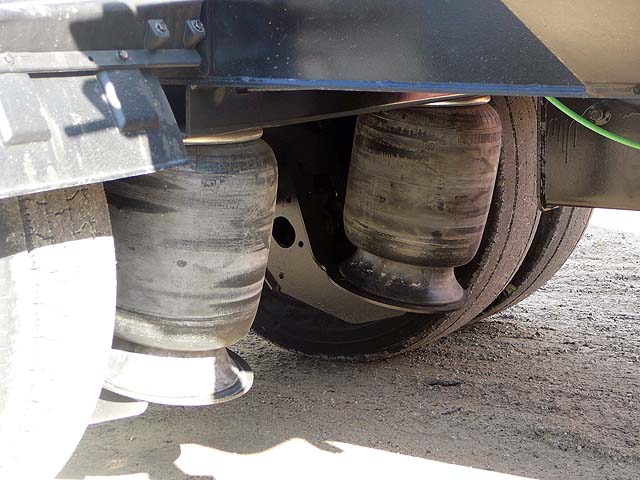

  • Dual, 25,000 lb. axles with oil bath hubs, air ride suspension and 109” axle spacing

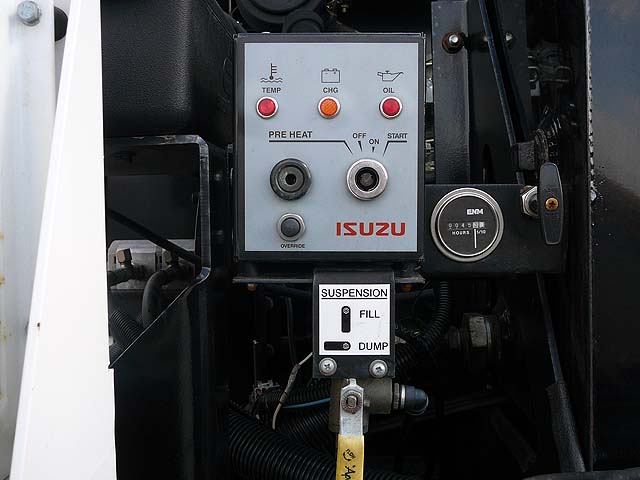

  • Air suspension dump valve at the rear of the trailer, for loading heavy containers

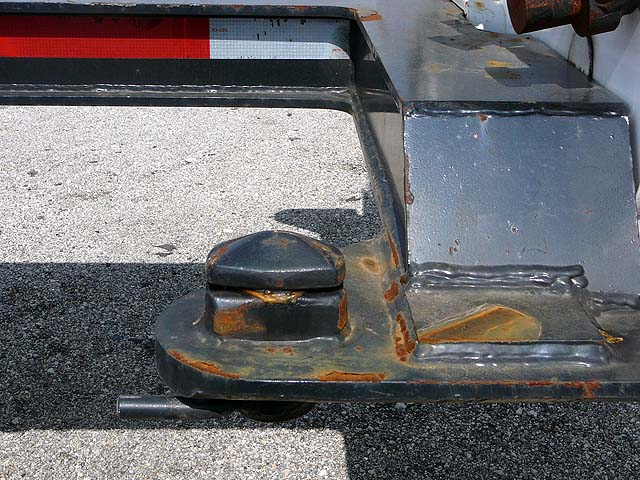

  • Twist Lock style container securements

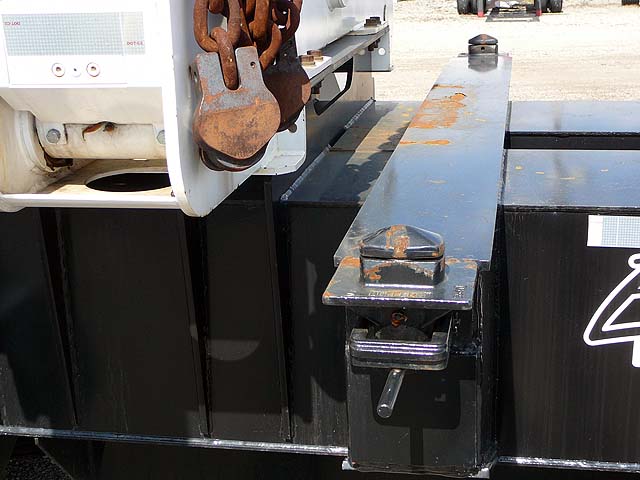

  • (4) Twist Lock extensions for containers without gooseneck tunnels
  • Twist Lock style container securements
  • Rear Bumper has brake & turn LED signals, strobe LED’s, 3-center LED ID lights, side marker LED’s, license plate lamp, and floodlights on rear corners
  • Mid-span marker LED’s on front end of rear telescoping tube
  • Side marker LED’s on end of front twist lock support arm

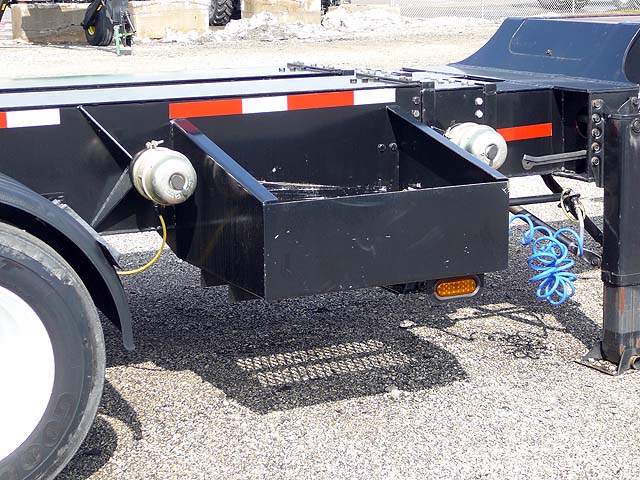

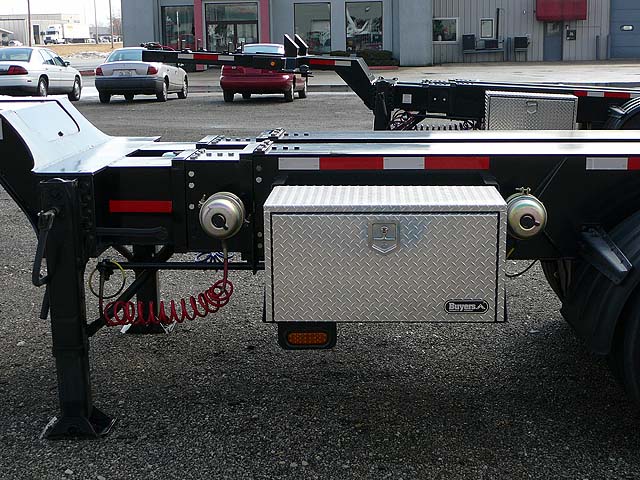

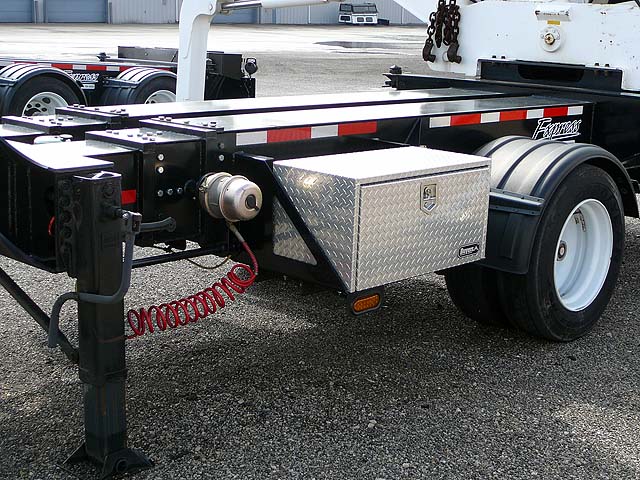

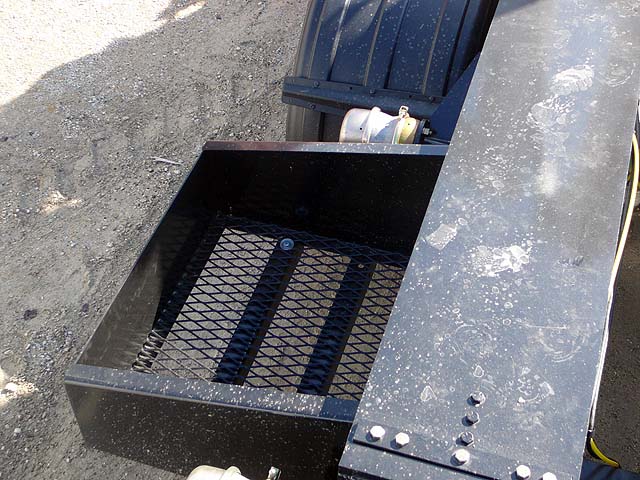

  • Right side storage basket, left side storage area with a locking toolbox
  • Trailer is painted black, with black poly fenders

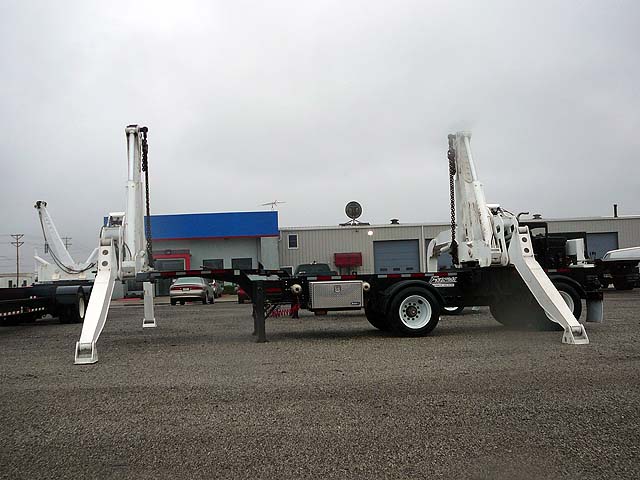

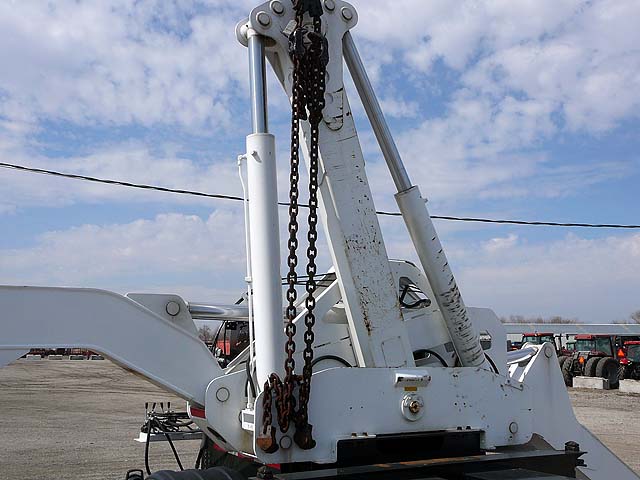

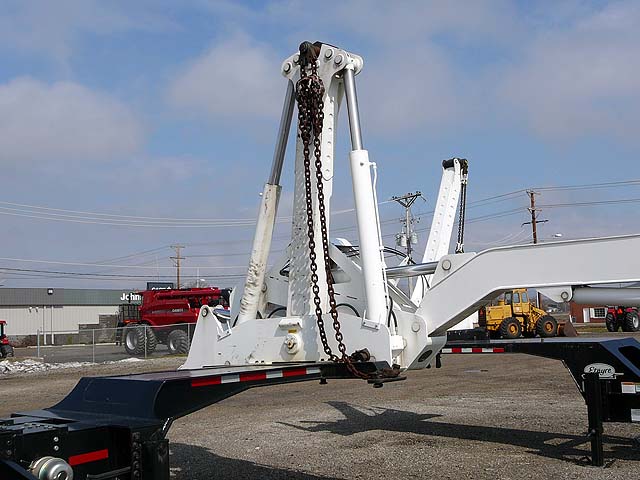

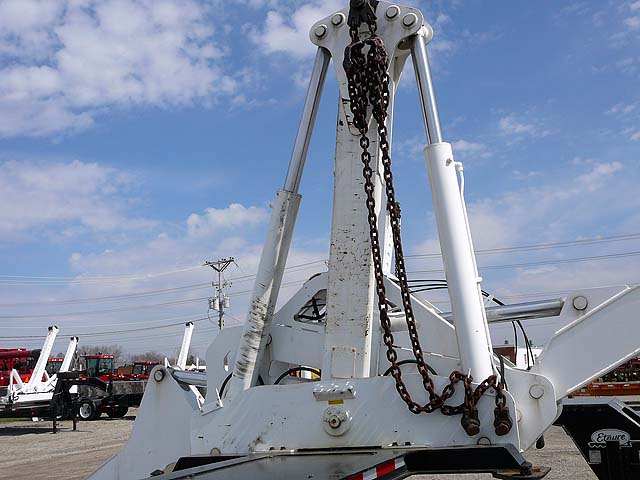

  • 27T Swing Thru Fixed Crane System with hydraulic operated booms
  • 5/8” Grade 80 lifting chains with shorting elements and ISO container lifting lugs

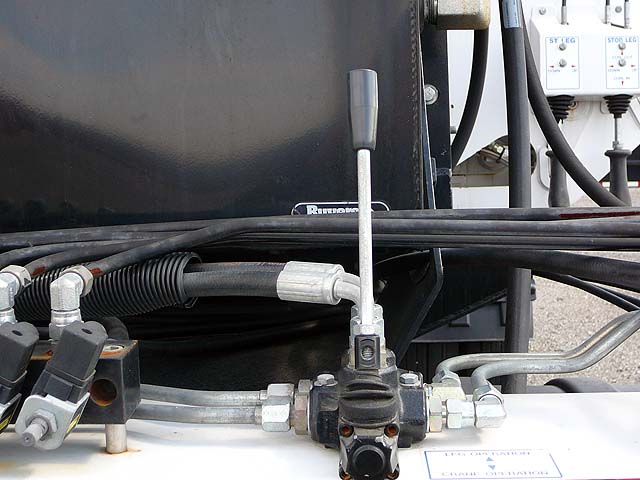

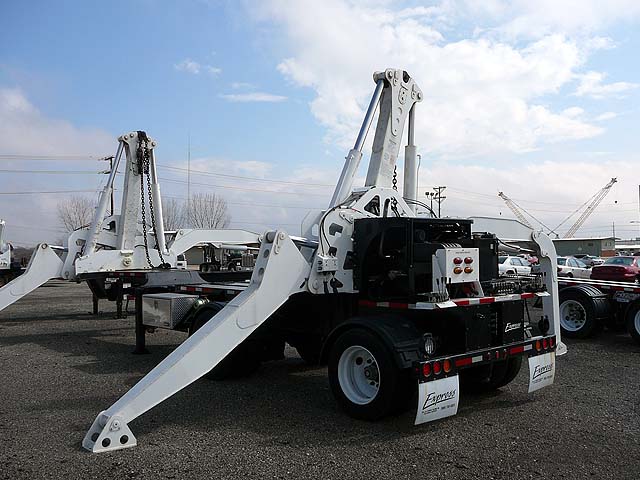

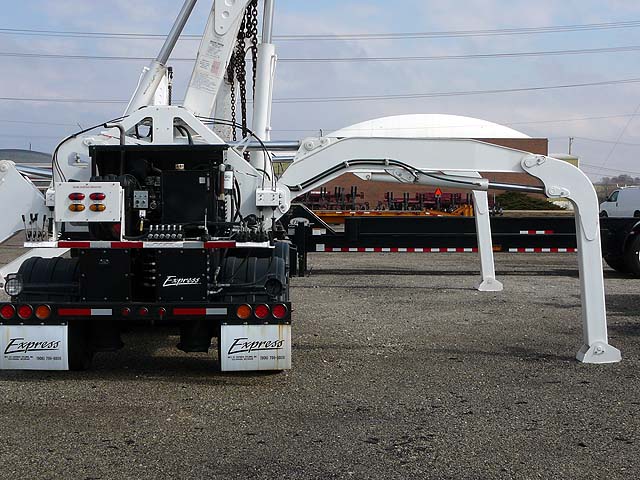

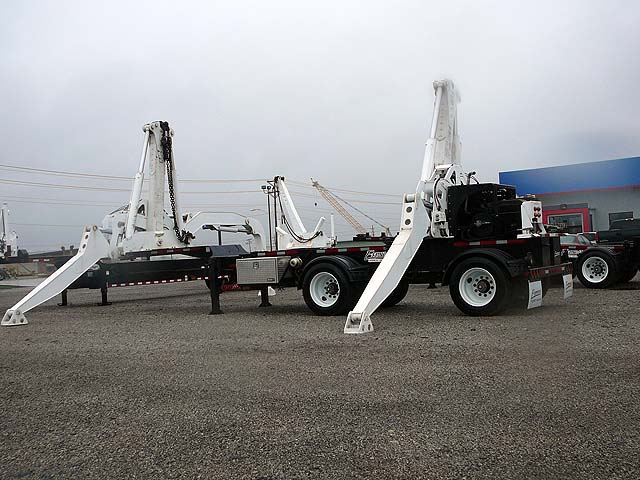

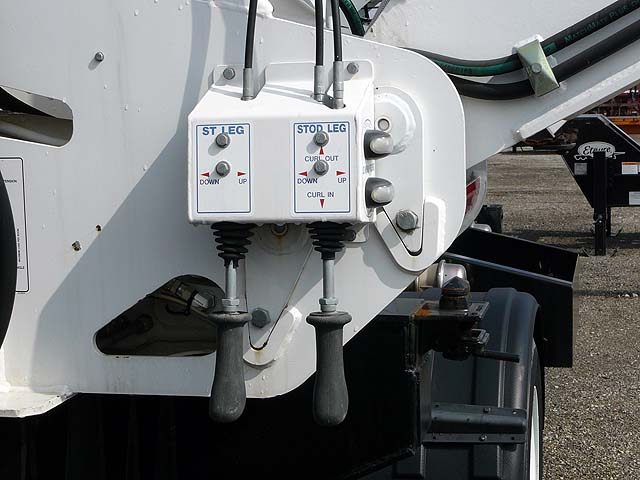

  • Manually controlled hydraulic stabilizing legs are located at all four corners of crane sets,(2) Slam down stabilizing legs and (2) over-the-deck stabilizing legs.  Over-the-deck legs allows another chassis to be backed under the legs for loading
  • Safety: Stabilizer leg minimum pressure system lights up when legs are properly deployed
  • Safety: Load Security system at 90% of rated lift amber lights will illuminate. At 100% partial system cut out will activate with audible alarm and red light. When overload is detected the operator can rest the machine by retracting the boom load.
  • Safety: Hydraulic cylinders have pilot operated check valves, or counter balance valves to ensure smooth operation and safety against hose failure or cylinder creep.
  • Manually operated hydraulic boom controls are mounted at both rear corners of the trailer
  • Transport height with a STD container on a 48" 5th  wheel height and booms in parked position is 13'6" (Parked position means head of boom off to the side, but no wider then 102”)
  • Transport height with a 40’ high cube (with the container tunnel straddling the gooseneck) is 13'6" with a 48” 5th  wheel height

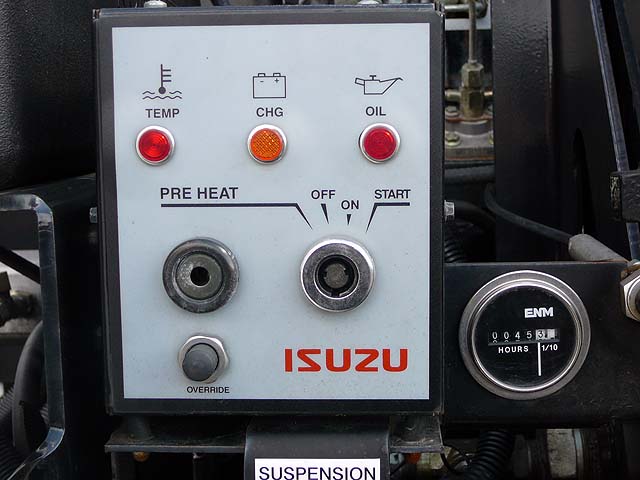

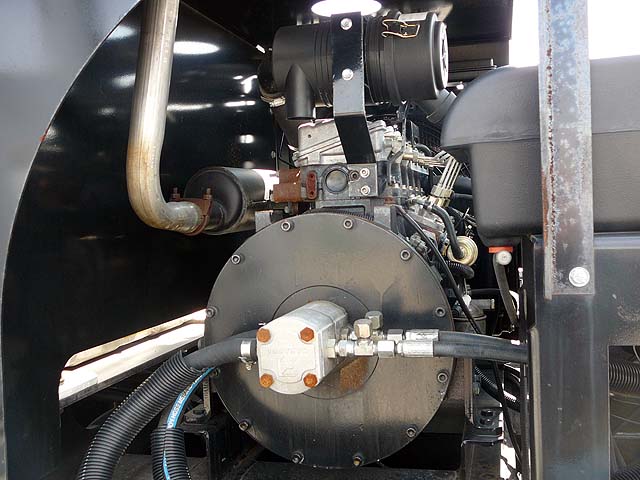

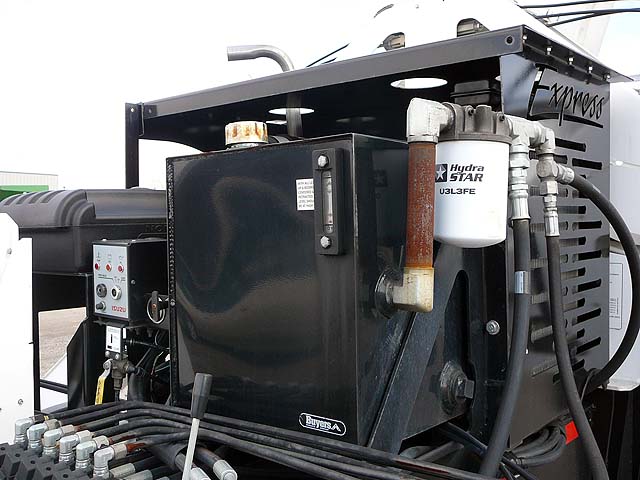

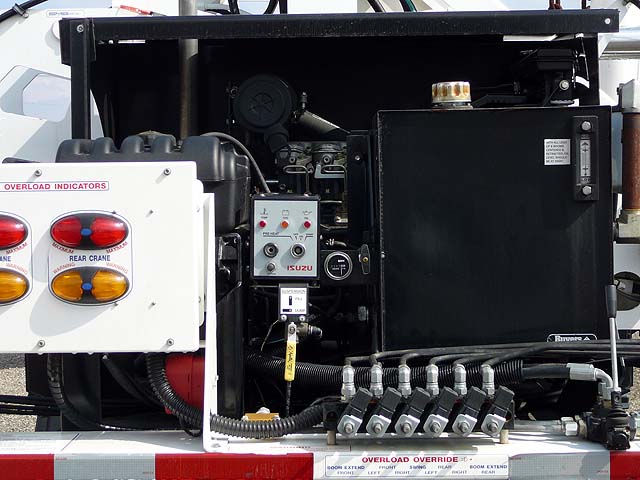

  • Self contained hydraulic system with double hydraulic pumps, oil reservoir and filter. A liquid cooled 52 Hp Isuzu diesel engine with 12 volt electric starter
  • Overall weight is 31,600 lbs

 This Swing Thru has only hours of use, everything works and it is ready to go to work











12059 E. Carriage Rd.
Rochelle, Illinois  61068
Call Lee at 815-751-6666
