New In Stock 10T Units
New 10T Swing Thru 22,000 lb. lifting capacity, double sided container handler.
Fixed mounting to truck or trailer.

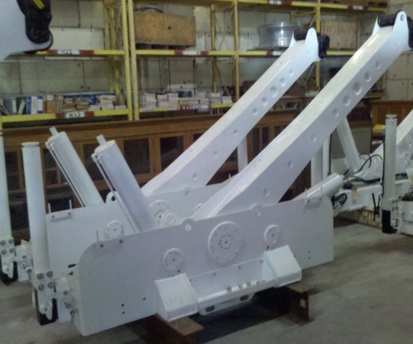

NEW 10T Swing Thru Fixed Crane System with 22,000 lb. lift capacity hydraulic operated booms.
·
3/8” Grade 100 lifting chains with shorting elements and ISO container lifting lugs
·        Hydraulic stabilizing legs mounted on sliding outriggers at all 4 corners
·        Manually operated hydraulic boom controls are mounted at both rear corners of the trailer
      for better visibility
·        Hydraulic cylinders have pilot operated check valves, or counter balance valves to ensure smooth
      operation and safety against hose failure or cylinder creep
·        STD Swing Thru paint is white
·        These crane sets can be mounted on a straight truck or trailer
·        Crane sets will require a double hydraulic pump to operate them
·        Either a PTO driven hydraulic system that runs off the truck transmission or a self contained
      hydraulic system with its own power supply is required.

             Blow out Price is $81.127.00 Plus Tax’s, FOB Rochelle IL

Price is without any hydraulic system or hoses running between crane sets. Price does include
the hydraulic control valve with out hoses and cable controlled slave controls.

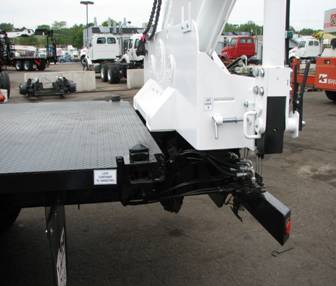

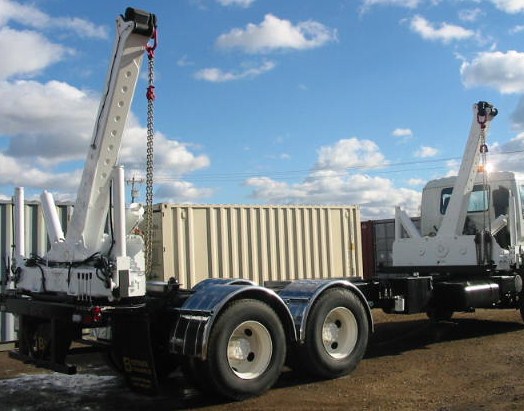

The two photos below are an example of how you can mount a fixed Swing Thru to a straight truck.


Flat deck with ISO twist locks mounted into the flat deck


No deck with ISO twist locks mounted to the truck frame
