· Manufactured in Escanaba, MI.

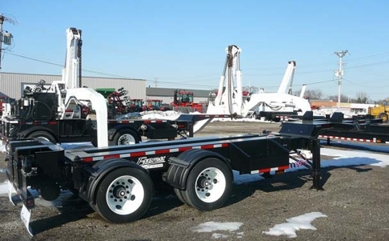

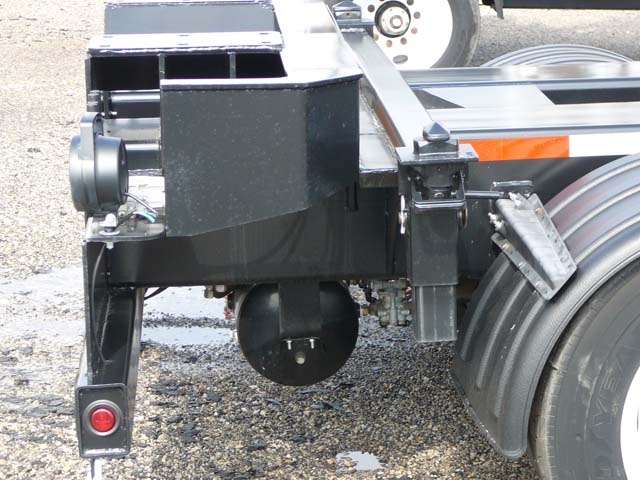

· This trailer is designed to mount a pair of Swing Thru 10T 22,000lb lifting capacity cranes.

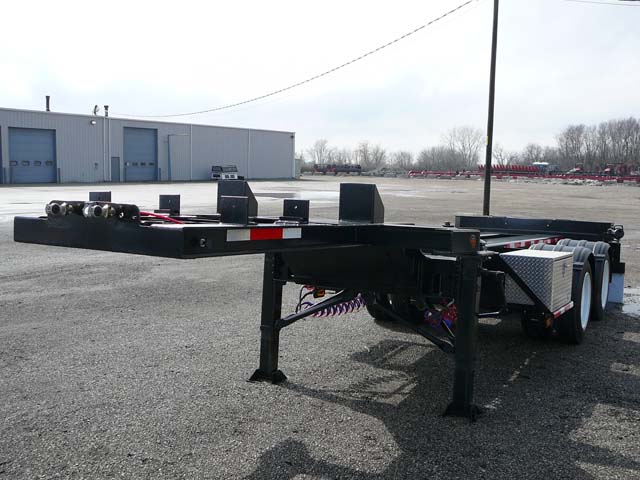

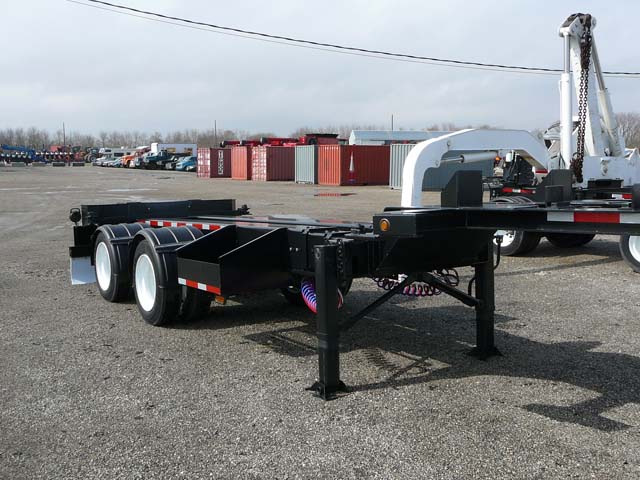

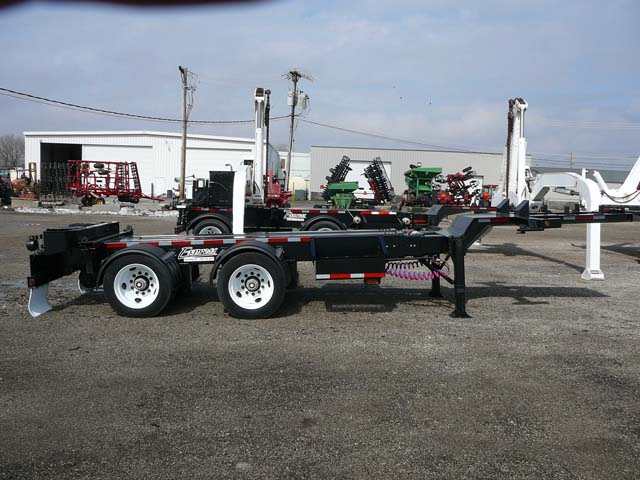

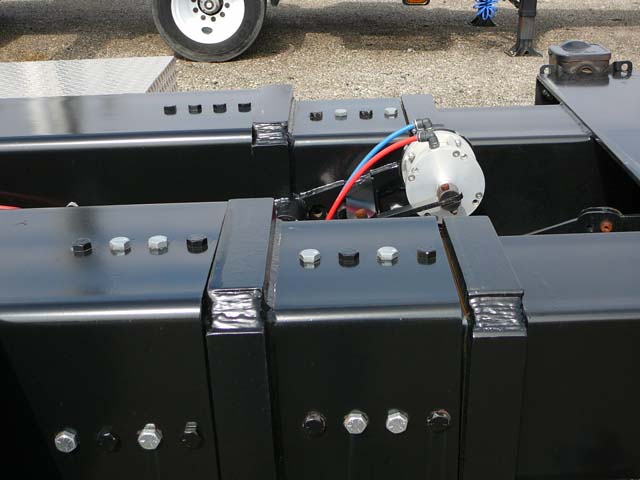

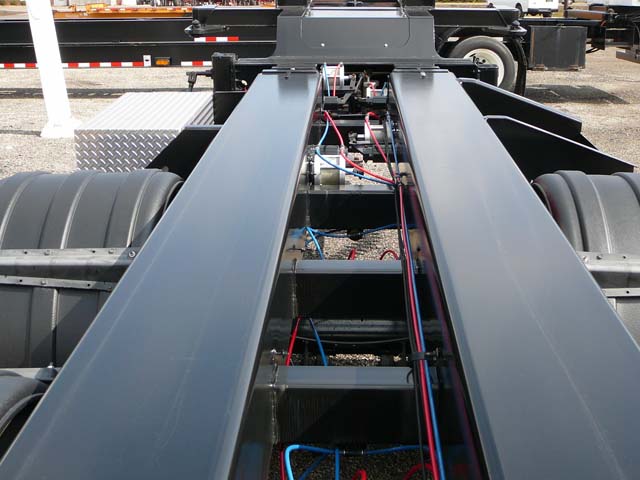

· Twin Beam telescoping frame (20' to 40' variable container lengths possible)
· Designed for a 48“ 5th wheel height
· Overall trailer length with a 20’ container is approx. 28’, with a 40’ it is approx. 48’
· Gooseneck mounted air controls for lengthening and shortening of trailer
· Drop in 5th wheel Kingpin with (2) locations 60" & 84"
· (2) Speed landing gear set
· 255/70R22.5 Radial tires on 10 bolt hubs piloted steel wheels
· 25,000 lb. axles, with air ride suspension
· GVWR 41,000lbs

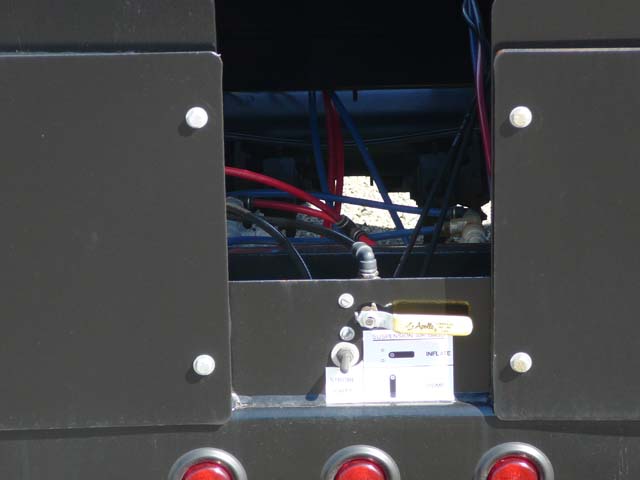

· Air suspension dump valve at the rear of the trailer, for loading heavy containers
· Twist Lock style container securements (rear telescopes up & down)
· (2) Twist Lock extensions for front on containers without a gooseneck tunnel

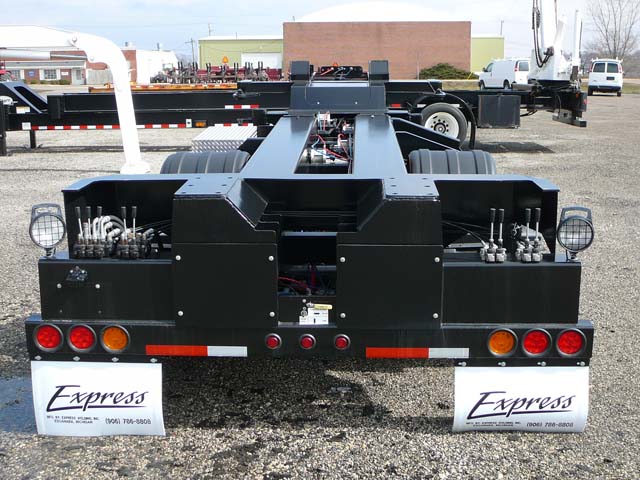

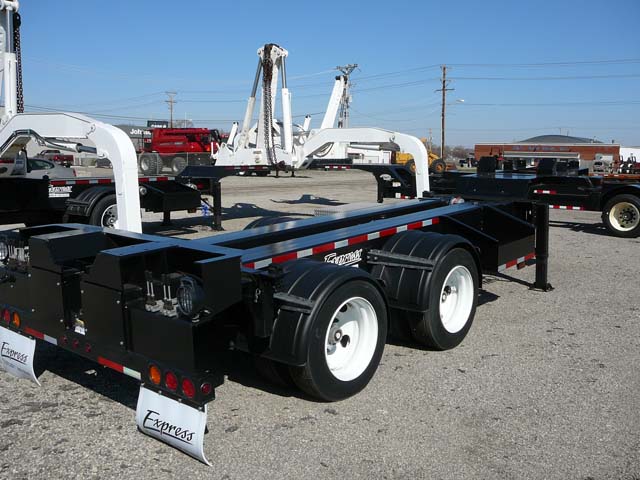

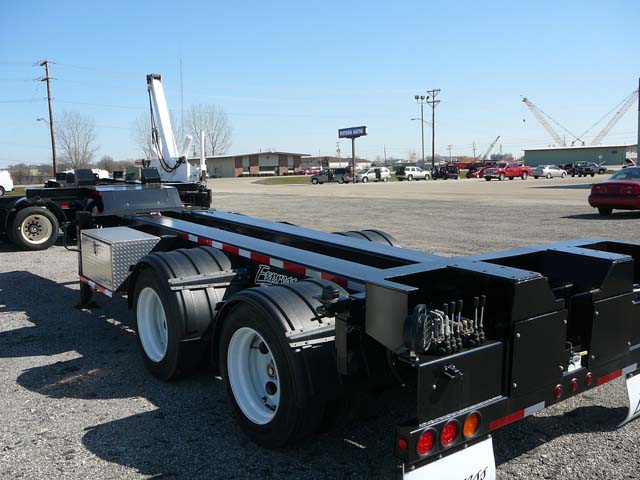

· Rear bumper has brake & turn LED signals, strobe LED’s, 3-center LED ID lights
· Side marker LED’s, license plate lamp, and floodlights on rear corners
· Mid-span marker LED’s
· Side marker LED’s on end of front twist lock support arm

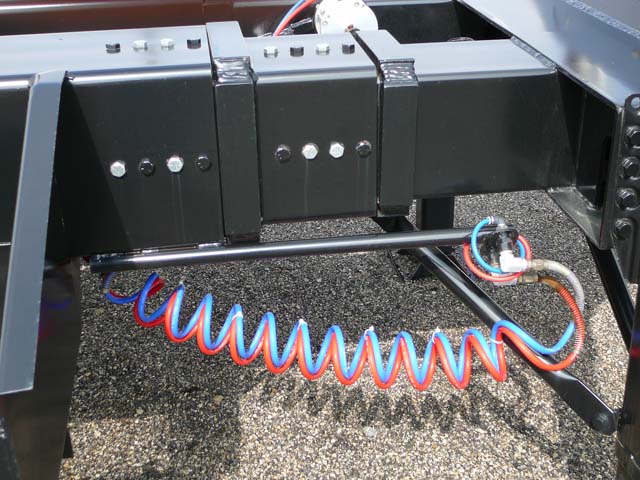

· E-Chain inside of the sliding tubes with hoses and electrical wiring

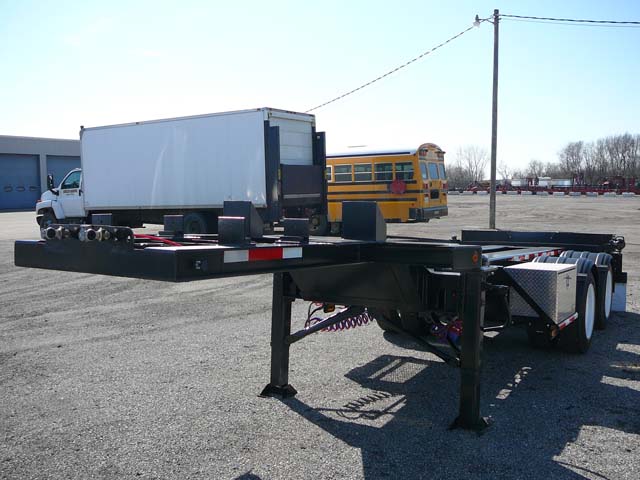

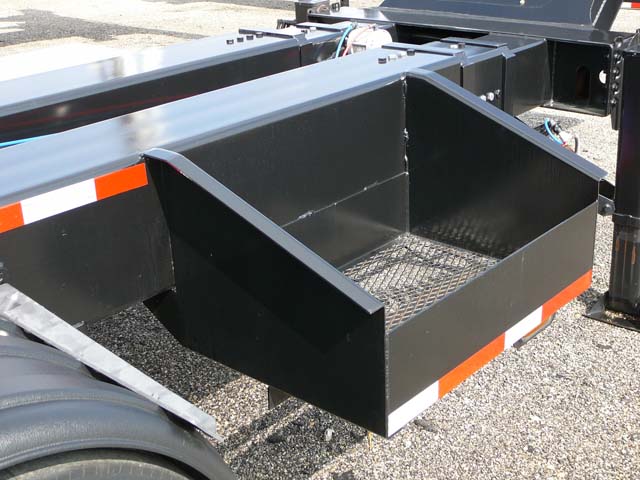

· Right side has large wire basket, left side a small wire basket with locking toolbox
· Fenders
· Trailer is painted black
|
